Crawl Space Encapsulation: Is It Worth It?

Crawl space encapsulation is the process of sealing the shallow space under your house from the soil and the outside air, and then keeping it dry. A heavy liner covers the ground and walls, the vents are closed, and a dehumidifier or a small supply of conditioned air removes the moisture that still gets in. This guide is part of our crawl space guides, and it is written by an engineer who does not sell the work.

If you have been handed an encapsulation quote, you are probably asking one question: is it worth the money? You are not alone, and the honest answer depends on your crawl space readings, not on the quote. In this guide I will explain what encapsulation includes, the signs that your crawl space needs it, the cases where it is a waste, what the building code requires, what it costs, and the mistakes you need to avoid.

What Is Crawl Space Encapsulation?

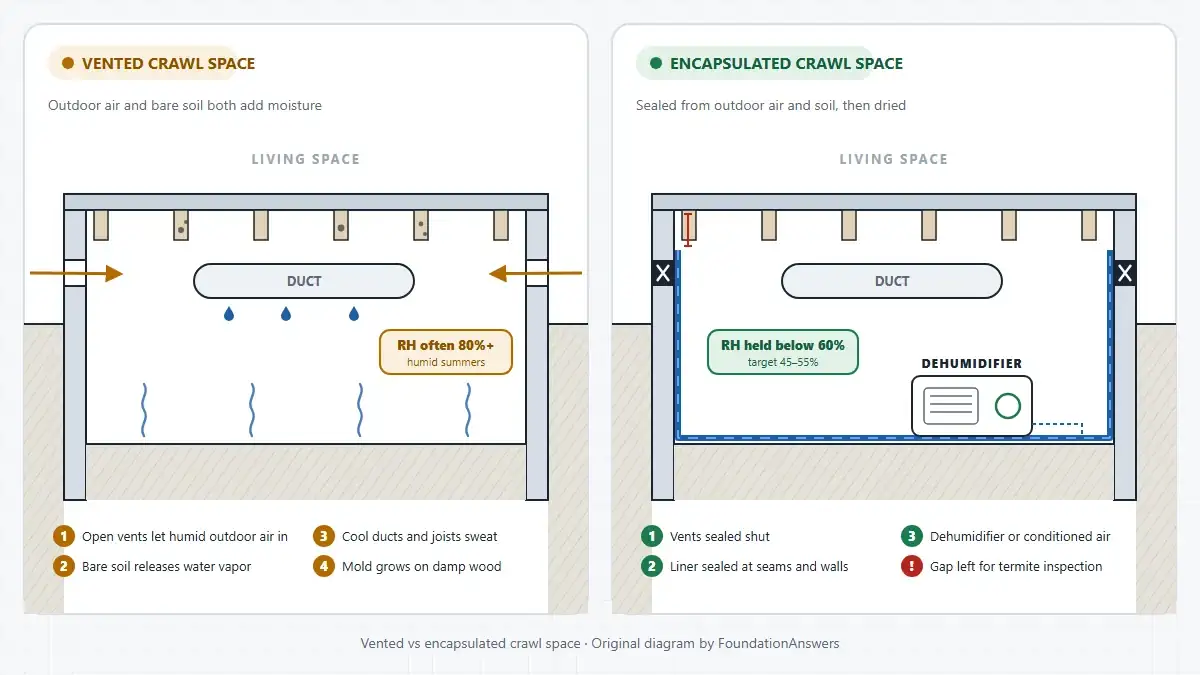

Crawl space encapsulation turns a vented crawl space into a sealed one. The building code calls a sealed crawl space an unvented crawl space. The goal is simple: stop moisture from the soil and the outside air, then dry whatever moisture is left.

Many quotes blur the line between a full system and a simple vapor barrier. Below I am explaining every part of an encapsulation system in a table, and which parts every job needs.

As the table shows, a vapor barrier alone covers only the first row. It is the cheapest single step and often the most effective one, because bare soil is a large and constant source of moisture. If you want to compare the two designs in more depth, read our guide to vented and sealed crawl space designs.

Signs Your Crawl Space Needs Encapsulation

You need measurements, not a contractor's flashlight tour. A digital hygrometer costs about the same as a takeout dinner, and a pin-type moisture meter is not much more. Leave the hygrometer in the crawl space for at least two weeks during humid weather. Below I am sharing the signs to check.

1. Relative humidity stays above 60%: The EPA advises keeping indoor humidity below 60%, ideally 30–50%, to limit mold. Air in a vented crawl space in a humid summer often sits far higher.
2. Joists or subfloor read above 20% moisture: USDA Forest Products Laboratory research treats 20% moisture content as the practical guideline for preventing decay in untreated wood.
3. Ducts, pipes or joists sweat in summer: Warm, humid outdoor air entering through the vents condenses on cooler surfaces when its dew point is above their temperature.
4. Fiberglass insulation sags or drips: Wet batts lose most of their insulating value and hold moisture against the wood.
5. The house smells musty near floor registers: Air from the crawl space rises into the living space through gaps in the floor.
6. Your ducts or air handler sit in the crawl space: Sealing and drying the space protects that equipment and stops it pulling damp air into the house.

Our guide to the right crawl space humidity level shows you how to take readings and what each range means.

When Crawl Space Encapsulation Is Not Worth It

Most installer websites leave this part out. In the cases below, a full system costs more than it saves, or it makes the problem worse.

1. The space is already dry: If readings stay mostly under 60% and the wood stays under 20%, a sealed ground liner and a check each season are enough.

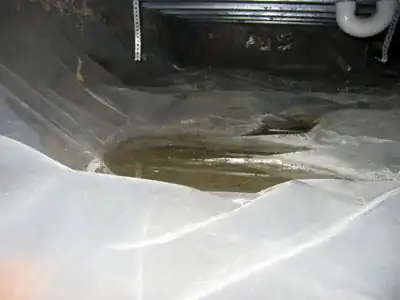

2. Water still gets in: Sealing a crawl space over standing water traps the moisture. You must fix gutters, downspouts and grading first, then add drainage if water still collects.
3. The framing is damaged: Rotten sill plates or sagging joists need repair before anything is covered with a liner.
4. You live in a dry climate: In much of the arid West, vented crawl spaces stay dry enough with a ground liner alone.
5. Your real goal is radon: Sealing alone does not reliably lower radon. The EPA's preferred method uses a sealed liner plus a fan and vent pipe that pull gas from under it.

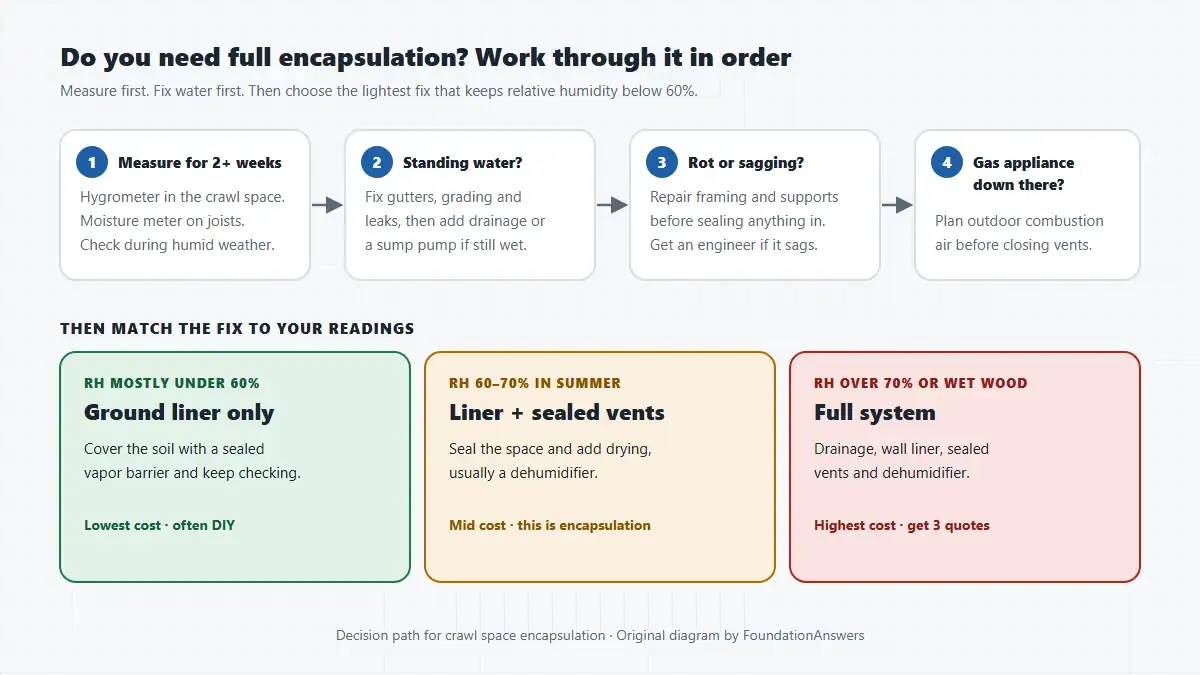

How to Decide If Encapsulation Is Right for You

Work through these steps in order. Each step can change the answer, so do not skip ahead to the quote.

1. Measure for two weeks: Record relative humidity in the crawl space and wood moisture in two or three joists, ideally during humid weather.
2. Check for standing water: Look after heavy rain. If water pools, fix the exterior drainage first.
3. Check the framing: Push a screwdriver into the sill plate and a few joists. Soft wood or sagging needs an engineer before any sealing.
4. Look for gas appliances: A furnace or water heater in the crawl space needs a plan for outdoor combustion air before the vents close.
5. Match the fix to your readings: Use the table below to choose the lightest fix that keeps humidity below 60%.

Below I am explaining which fix matches each set of readings in a table.

As the table shows, the fix grows with the readings. A dry space needs only a sealed liner, and a full system is justified only when humidity and wood moisture stay high or water reaches the ground.

Does Crawl Space Encapsulation Save Energy?

Installers often promise 15–20% lower energy bills. That figure comes from a well-known field study by Advanced Energy in Princeville, North Carolina, run from 2001 to 2005. In that hot, humid climate, closed crawl spaces cut annual heating and cooling energy by about 15–18%. The vented crawl spaces often went above 80% relative humidity in summer, while the closed ones stayed near 60%.

A later study by the same group in Baton Rouge and Flagstaff found the humidity benefit everywhere, but the energy result swung widely with climate, insulation and duct location: from a 6% saving to a 29% penalty in one set of homes. So here is the honest answer. Encapsulation reliably makes a crawl space drier, and it saves energy mainly in humid climates where ducts run under the floor. Treat any guaranteed savings figure as a sales claim.

What the Building Code Requires

The International Residential Code (IRC) allows both vented and sealed crawl spaces in Section R408. Your local building department adopts a specific edition, sometimes with changes, so you need to check before work starts. Below I am explaining the main requirements in a table.

As the table shows, the code allows both designs. What it does not allow is a sealed crawl space without a ground liner and a way to dry the air.

One detail surprises many homeowners. A 6-mil polyethylene sheet already counts as a Class I vapor retarder. Thicker 10–20 mil liners don't block more vapor; they resist tearing when people crawl over them. Pay for thickness where the space gets regular foot traffic, such as around equipment.

Safety Checks Before You Seal the Crawl Space

Below I am sharing the other checks you need to complete before the liner goes down.

1. Termites: In termite-prone areas, leave a visible strip of foundation wall below the sill plate uncovered, often about 3 inches, so a termite inspector can see it. Many state pest control rules expect one.
2. Radon: Test for radon before and after the work. If levels are high, ask for a sub-membrane fan system; the EPA reports reductions of 80–98% when it is installed well.
3. Plumbing leaks: Fix dripping pipes and drain lines first. A sealed liner hides small leaks until they cause damage.
4. Mold: Clean active mold growth and remove wet insulation before the liner goes down.

How Much Crawl Space Encapsulation Costs

National cost data from Angi and HomeAdvisor puts most professional jobs between $5,000 and $15,000, with an average of about $5,500. Labor makes up roughly half to two-thirds of the total. Below I am explaining the typical cost of each scope in a table. For prices by size and component, read our crawl space encapsulation cost breakdown.

As the table shows, a DIY liner costs a fraction of a full system, so the readings that decide your scope also decide most of the price.

You can estimate your own budget with a simple formula:

Estimated cost = crawl space area (sq ft) × cost per sq ft for your scope

Example: A 1,200 sq ft crawl space with a basic system works out to roughly 1,200 × $2–$4 = $2,400–$4,800, before any drainage or repairs. Remember the running cost too. A dehumidifier uses electricity for the life of the system: a 500-watt unit running 8 hours a day uses 4 kWh a day, so multiply that by your electricity rate to see the monthly cost.

DIY or Professional Encapsulation?

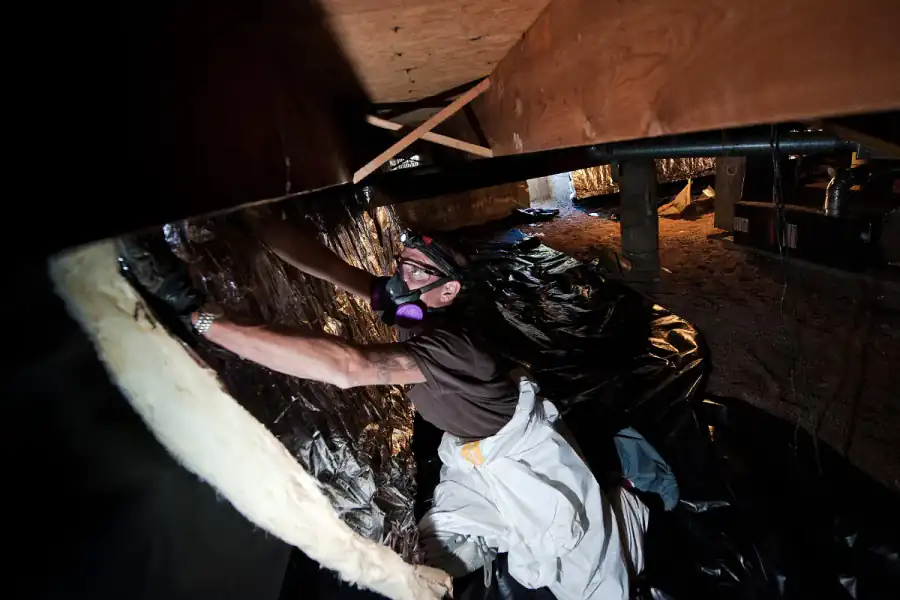

A ground liner is a realistic DIY job if your crawl space has enough room to work. Stego, a liner manufacturer, estimates 8–10 hours for two people to line 1,000 sq ft. Full encapsulation with wall liners, vent sealing, drainage and a dehumidifier is harder: access is tight, the sealing has to be continuous, and drainage and electrical work often need a licensed trade.

If you hire a contractor, the signs below suggest a quote is padded:

• No humidity or wood moisture readings to back up the recommendation
• A full system quoted for a crawl space with no water and normal readings
• A guaranteed percentage cut in your energy bill
• Mold "fogging" sold as a substitute for removing moisture
• No mention of combustion air when a gas appliance sits in the crawl space

Common Mistakes to Avoid With Encapsulation

1. Sealing a wet crawl space: The liner traps the water underneath and the space stays damp. Fix the water first.
2. Buying before measuring: Without two weeks of readings, you can't tell whether you need a liner or a full system.
3. Leaving gaps in the liner: Untaped seams and loose edges let ground moisture bypass the barrier. The code expects 6-inch overlaps that are sealed.
4. Forgetting the drying step: Closing the vents without a dehumidifier or conditioned air leaves moisture with nowhere to go.
5. Ignoring gas appliances: Sealing a crawl space that holds an atmospheric furnace or water heater creates a carbon monoxide risk.

Conclusion

Crawl space encapsulation is a sound method, but it is not the right answer for every house. If your crawl space stays humid, your joists read high and you live in a humid climate, a sealed and dried crawl space protects the wood, the ducts and the air you breathe. If the space is already dry, a ground liner gives you most of the benefit for a fraction of the cost. Measure first, fix the water first, and check your local building department before any work starts. Want more answers like this? Explore our engineer-written answers for homeowners.

Frequently Asked Questions

1. What are the negatives of crawl space encapsulation?

   The main downsides are cost, a dehumidifier that runs and needs servicing for the life of the house, and the risk of trapping water if drainage problems are not fixed first. A sealed crawl space also needs a plan for gas appliances, because closing the vents can starve them of combustion air.

2. How much does it cost to encapsulate a 2,000 sq ft crawl space?

   Using national per-square-foot ranges, a basic job on 2,000 sq ft runs roughly $4,000 to $8,000, and a full system with drainage and a dehumidifier roughly $6,000 to $20,000. Access, moisture level and region move the price more than size alone, so compare at least three itemized quotes.

3. Will mold grow under a vapor barrier?

   Mold can survive on organic debris or wood left under a liner, but it needs moisture and air to spread. Clear wood scraps and old insulation before installing the liner, fix any standing water, and seal the seams. A properly sealed liner over dry, clean soil does not create a mold problem.

4. Do I need a dehumidifier in an encapsulated crawl space?

   Usually yes. A sealed crawl space still gains moisture from the house and from small leaks, so it needs a way to dry. The building code accepts a dehumidifier, a small supply of conditioned air, or continuous exhaust. In humid climates, a dehumidifier is the most common choice.

5. Is crawl space encapsulation a scam?

   No, the method is sound and is recognized in the building code as an unvented crawl space. The problem is overselling: full systems are sometimes sold for crawl spaces that only need a ground liner. Ask for humidity and wood moisture readings before you agree to anything.

6. Does encapsulation add value to a home?

   There is no reliable data showing a fixed increase in sale price. A dry, documented crawl space does help in a home inspection, because buyers and inspectors look for moisture, mold and rot under the floor. Keep the installer's warranty and your humidity records.

Sources and Standards

1. International Code Council, 2021 International Residential Code, Section R408: Under-floor space.
2. Advanced Energy, closed crawl space performance study, Princeville, North Carolina (US Department of Energy, OSTI record 850459).
3. US Department of Energy, Unvented crawlspaces code adoption, Building America.
4. Building America Solution Center, Unvented, insulated crawlspaces.
5. US EPA, A brief guide to mold, moisture and your home.
6. US EPA, Consumer's guide to radon reduction.
7. USDA Forest Service, Forest Products Laboratory, Limiting conditions for decay in wood systems.
8. US Department of Energy, Combustion appliance safety technical brief.
9. Angi, crawl space encapsulation cost data, 2026.

This guide is general information and does not replace an on-site inspection by a qualified professional. Read our disclaimer.
