Bowing Basement Wall: Why It Happens, How Much Is Too Much and How to Fix It

A bowing basement wall is a foundation wall that bulges or leans inward toward the basement. It happens when the soil outside pushes sideways harder than the wall can resist, usually because the soil is wet, expansive or frozen. Bowing is most common in concrete block walls, where the bend shows up as a long horizontal crack along a mortar joint near mid-height. This guide is part of our guide to telling whether a foundation crack is serious, where every crack pattern is explained.

If your inspector flagged a bowing wall, or you have just noticed a long horizontal crack in the basement, you are not alone, and it is worth acting calmly rather than quickly. In this guide I will explain why basement walls bow, how to measure the bow yourself, how much movement is too much, which repair fits each stage, and what each repair costs in 2026.

What Is a Bowing Basement Wall?

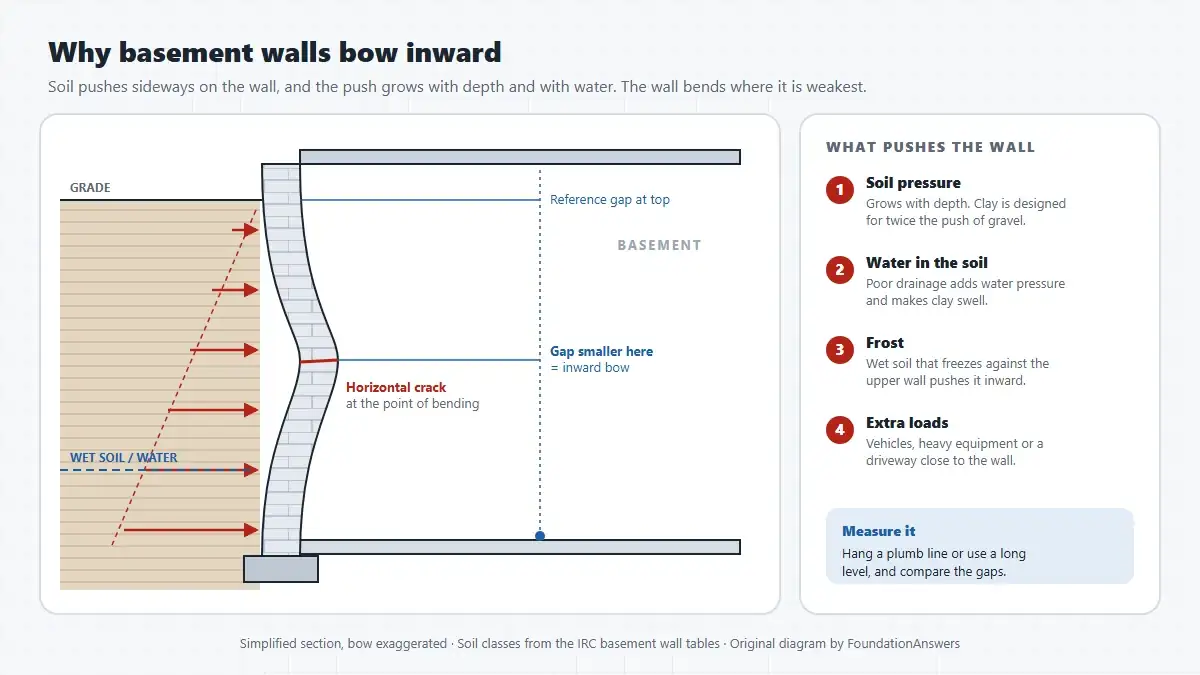

A basement wall works like a short beam standing on end. The floor framing holds it at the top, the footing and floor slab hold it at the bottom, and the soil pushes on it in between. When that push is too strong, the wall bends inward between its supports. The bend is largest near mid-height, which is why the crack usually forms there.

Concrete block walls bow more often than poured walls because the mortar joints are weak in tension. Poured concrete walls are stronger, but they can still crack and lean inward under heavy pressure, often with diagonal cracks from the corners. A wall can also tip at the top or slide inward at the bottom; both are more serious than a simple bow.

What Causes a Basement Wall to Bow?

Every bowing wall has the same basic cause: more sideways pressure than the wall was built to resist. Below I am sharing what increases that pressure.

1. Soil type: Some soils push much harder than others. The International Residential Code (IRC) basement wall tables design for about 30 pounds per square foot per foot of depth in gravel and sand, but about 60 in clay soils.
2. Water in the soil: Saturated soil weighs more and adds water pressure. Clogged gutters, short downspouts and soil that slopes toward the house keep the backfill wet.
3. Expansive clay: Clay swells when it gets wet and pushes harder against the wall, then shrinks and lets debris fall into the gap, so the cycle repeats.
4. Frost: Wet soil that freezes against the upper part of the wall expands and pushes it inward, especially where the wall is shallow or uninsulated.
5. Extra loads near the wall: Driveways, parked vehicles, heavy equipment or a new addition close to the wall add pressure the original design never expected.

Our guides to settling, soil and subsidence explain expansive clay and frost in more detail.

You can see how much force a wall resists with a simple formula used in basic soil mechanics:

Sideways force per foot of wall (lb) = ½ × soil pressure value (psf per ft) × backfill height (ft)²

Example: A basement wall with 7 feet of clay backfill, using the IRC's design value of 60, carries about ½ × 60 × 7 × 7 = 1,470 pounds for every foot of wall length. The same wall in gravel, at 30, carries about 735 pounds. Along a 30-foot wall in clay, that is roughly 44,000 pounds of sideways push, before you add any water pressure or frost.

Signs Your Basement Wall Is Bowing

Bowing develops slowly, so the signs build up over years. Below I am explaining what to look for and what each sign means, in a table.

As the table shows, a horizontal crack and a bulge together mean the wall is bending, while a lean at the top or a slide at the bottom means it is moving as a whole, which is the more serious case.

How to Measure a Bowing Basement Wall

You can measure the bow yourself in half an hour. Your readings help the engineer and let you track any change. Below I am sharing the steps.

1. Hang a plumb line: Fix a string with a weight near the top of the wall, a few inches out from the face, so it hangs to the floor.
2. Measure at the top, middle and bottom: Record the gap between the string and the wall at each height. A smaller gap at mid-height means the wall bows inward there.
3. Work out the bow: Subtract the mid-height gap from the average of the top and bottom gaps. That number is the inward bow.
4. Repeat along the wall: Measure every 4 to 6 feet, so you find the point of greatest bow.
5. Check the crack: Measure the crack width and note whether the upper blocks sit further in than the lower ones.
6. Mark and date everything: Pencil the readings on the wall and photograph them. Repeat every few months.

How Much Bowing Is Too Much?

No building code sets a single limit for how far an existing wall can bow. Engineers judge each wall by the amount of movement, whether it is still moving, and whether the wall is still carrying its load safely. Below I am sharing the published reference points.

1. Half an inch of movement: Tom Feiza, an engineer and home inspector writing for the American Society of Home Inspectors, treats inward wall movement over about 1/2 inch as potentially serious, and a horizontal crack wider than 1/8 inch with 1/2 inch or more of movement as needing repair.
2. Horizontal cracks with bowing: NAHB guidance lists horizontal basement wall cracks, especially with bowing or leaning, among the signs of a potential structural problem that needs an engineer.
3. The middle third: A builder warranty definition quoted by NAHB treats a structural component as unstable when it rotates so far that its weight falls outside the middle third of its bearing area. For a standard block wall, which is about 7.6 inches thick, the middle third is roughly the central 2.5 inches.
4. Repair-type guides: Installers commonly limit carbon fiber straps to walls bowed less than about 2 inches. This is a practical industry guide, not a code limit.

How Is a Bowing Basement Wall Fixed?

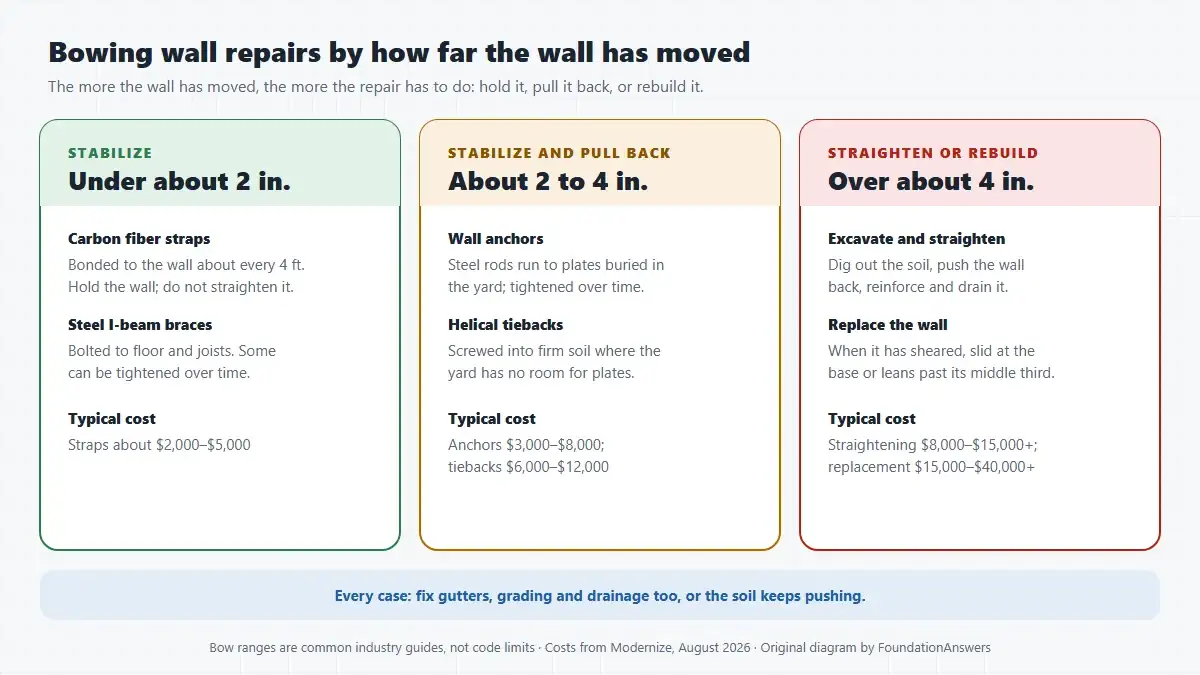

The repair depends on how far the wall has moved and whether you want it straightened or only held in place. Below I am explaining each method, when it fits and its typical 2026 cost from Modernize's cost data, in a table.

As the table shows, the cheapest repairs hold the wall where it is, the middle options pull it back slowly, and the expensive ones dig it out or rebuild it. The cost rises with the movement, so catching a bow early saves money. The glossary entry for wall anchors explains how the buried plates resist the soil, and our hub of foundation repair methods compared covers each method in more depth.

So, Which Repair Is Right for Your Wall?

The right repair depends on your wall, your yard and your goal. Below I am sharing how the choice usually works out.

• A small, recent bow on a block wall: stabilize it with carbon fiber straps or steel braces, and fix the drainage.
• A moderate bow you want pulled back: wall anchors, if the yard has open ground beside the wall for the buried plates.
• A moderate bow next to a driveway, patio or property line: helical tiebacks, which need less room outside.
• A large bow, a slide at the base or a strong lean: excavation and straightening, or replacement.

Whatever the repair, ask for the engineer's design in writing, a permit where your building department requires one, and a transferable warranty. Then check the wall with your plumb line once a year.

Common Mistakes to Avoid With a Bowing Basement Wall

1. Sealing the horizontal crack and moving on: A crack filler stops water, not movement. The wall keeps bowing behind the patch.
2. Ignoring the gutters and grading: Every repair works better, and lasts longer, when the soil behind the wall stays drier.
3. Using straps on a wall that has moved too far: Straps hold a wall in place. They do not fix a wall that has already slid or leaned badly.
4. Tightening anchors too fast: Wall anchors pull the wall back gradually, over seasons. Forcing it cracks the wall further.
5. Skipping the engineer: A contractor's free inspection is not an independent design. A structural report protects you and helps when you sell.
6. Parking or building close to the wall: Heavy loads beside a bowed wall add pressure while you wait for the repair.

Conclusion

A bowing basement wall is a structural problem caused by soil pushing harder than the wall can resist, usually because of water, clay or frost. Measure the bow with a plumb line, fix the gutters and grading, and get a structural engineer's report. Small bows are held in place with straps or braces, moderate bows are pulled back with anchors or tiebacks, and large ones need excavation or a new wall. Check your local building department's permit rules before work starts. For more help, browse our independent guides to foundation walls, cracks and repairs.

Frequently Asked Questions

1. Should I buy a house with a bowing basement wall?

   You can, if you price the repair first. Ask a structural engineer to measure the bow and name the repair, then get two or three written quotes and use them to negotiate. A wall bowed less than about 2 inches with a horizontal crack is usually a stabilizing job. A wall that has sheared, slid at the base or leans badly can mean excavation or replacement, which costs far more.

2. How much does it cost to fix a bowing basement wall?

   Modernize's 2026 data puts most bowing wall repairs at $2,000 to $10,000, with an average near $4,500. Carbon fiber straps run about $2,000 to $5,000, wall anchors $3,000 to $8,000 and helical tiebacks $6,000 to $12,000. Excavating and straightening runs $8,000 to $15,000 or more, and full wall replacement $15,000 to over $40,000.

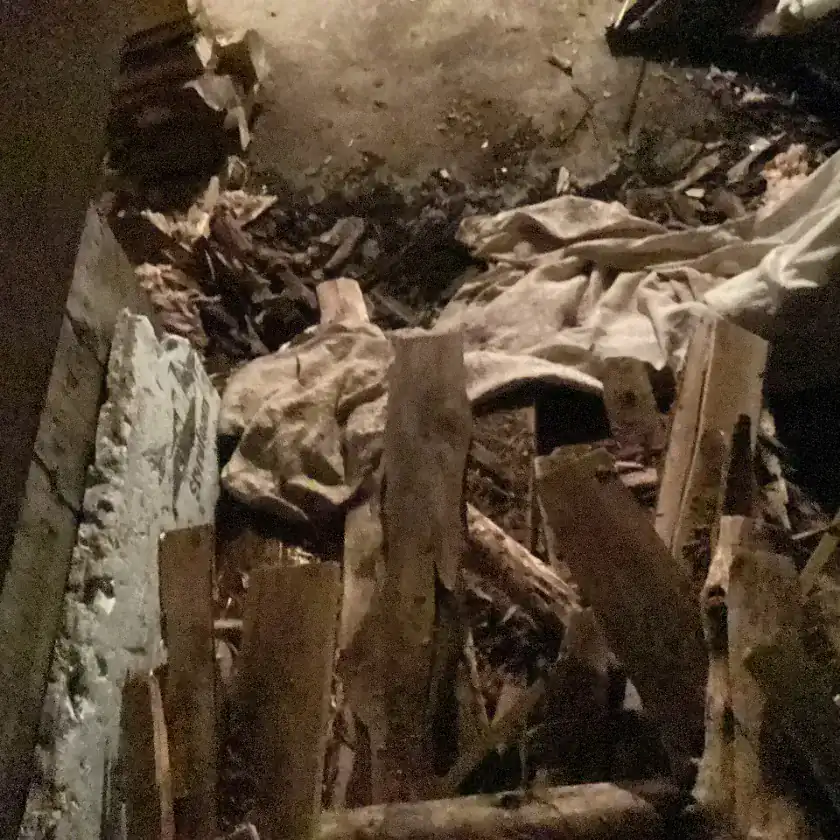

3. Can a bowing basement wall collapse?

   Yes, if it is left to keep moving. A wall that bows further each year, cracks horizontally and starts to lean or slide at its base can eventually lose support for the floor above. Collapse is rare and usually follows years of visible warning signs, so measuring the wall and acting early prevents it.

4. Does homeowners insurance cover a bowing basement wall?

   Usually not. Standard policies exclude damage from soil pressure, settling, earth movement and gradual water seepage, which cause nearly all bowing walls. Coverage generally applies only when a sudden covered event damages the wall, such as a vehicle hitting it. Check your own policy and ask your insurer before work starts.

5. Do carbon fiber straps work on bowing walls?

   They work for walls that have moved only a little, when they are installed to the manufacturer's design. The straps stop further inward movement but do not push the wall back. Installers commonly limit them to walls bowed less than about 2 inches; a wall that has moved more usually needs anchors, braces or excavation.

6. Can I fix a bowing basement wall myself?

   You can do the drainage part yourself: clean gutters, extend downspouts and slope the soil away from the wall. The structural repair is not a DIY job. Anchors, braces and straps need an engineer's design and correct installation, and many areas require a permit for structural work on a foundation wall.

Sources and Standards

1. International Code Council, International Residential Code, Section R404 (foundation and retaining walls), basement wall tables by soil class; values as reproduced in state and county code documents.
2. T. Feiza, American Society of Home Inspectors, Basement cracks and leaks, ASHI Reporter.
3. National Association of Home Builders, Construction Liability and Risk Management Committee, W. Keaveny, PE, Misconceptions about the common crack, January 2018.
4. Modernize, Bowing basement wall repair cost, updated August 2026.
5. Colorado Geological Survey, Expansive soil and rock.

This guide is general information and does not replace an on-site inspection by a qualified professional. Read our disclaimer.
